Search Trees

Binary Search Trees (BST)

Binary Tree

A binary tree $T$ is a set $N$ of nodes where each node $u_0$ has two pointers, $u_0$ .left and $u_0$ .right.

The size of $T$ is $|N|$ .

Complete Binary Tree

Every level of the tree is completely filled, except possibly the last level. Moreover, the last level has to be filled from left to right.

If a complete binary tree is also complete on the last level, then it is called a perfect binary tree.

Height of binary trees

Minimum number of nodes in a binary tree of height $h$ :

\begin{gather*} \mu(h) = h + 1 \end{gather*}

Maximum number of nodes in a binary tree of height $h$ :

\begin{gather*} M(h) = 2^{h+1} - 1 \end{gather*}

Binary Search Tree

AVL Trees

Balance Factor

Insertion and Deletion Algorithms

UPDATE PHASE: Insert or delete as we would in a binary search tree.

Insertion Rebalancing

Deletion Rebalancing

Ratio/Weight Balanced Trees

ρ-ratio

Insertion and Deletion Algorithms

Rebalance(u)
  While (u != u.parent)
    u <- Rebalance-Step(u)
    u <- u.parent

Rebalance-Step(u)
  If (ratio(u) >= 3)
    v <- u.left
    If (ratio(v) >= 3/5)
      Return(rotate(v))
    Else \\ ratio(v) < 3/5
      Return(double-rotate(v.right))
  elif (ratio(u) <= 1/3)
    v <- u.right
    If (ratio(v) <= 3/5)
      Return(rotate(v))
    Else \\ ratio(v) > 3/5
      Return(double-rotate(v.left))
  else
    Return(u)

Generalized B-Trees: (2,3)-trees

(a,b)-search trees

Lecture Note 3, Page 80.

An (a,b)-search tree is an (a,b)-tree whose nodes are organized as an external search tree, which means items are only stored in leaves. Leaves are also called external nodes.

Reorganization of nodes

Simple Remedy: borrow or donate children

Strong Remedy: when simple remedy fails.

Split an overfull node
Merge an underfull node

Split-Merge Inequality

PreviousRecurrences NextDynamic Programming

Last updated 3 years ago

Binary Search Trees (BST)

Binary Tree

A binary tree $T$ is a set $N$ of nodes where each node $u_0$ has two pointers, $u_0$ .left and $u_0$ .right.

The size of $T$ is $|N|$ .

Complete Binary Tree

Every level of the tree is completely filled, except possibly the last level. Moreover, the last level has to be filled from left to right.

If a complete binary tree is also complete on the last level, then it is called a perfect binary tree.

Height of binary trees

Minimum number of nodes in a binary tree of height $h$ :

\begin{gather*} \mu(h) = h + 1 \end{gather*}

Maximum number of nodes in a binary tree of height $h$ :

\begin{gather*} M(h) = 2^{h+1} - 1 \end{gather*}

The minimum height of binary trees with $n$ nodes:

\begin{gather*} h \ge \lg(n + 1) - 1 \end{gather*}

Binary Search Tree

A binary tree is a binary search tree if each node $u \in T$ has a field $u$ .key that satisfies the BST property:

\begin{gather*} u_L.key < u.key \le u_R.key \end{gather*}

AVL Trees

Balance Factor

More generally, define the balance of any node $u$ of a binary tree to be the height of the left subtree minus the height of the right subtree:

\begin{gather*} b(u) = h(u.left) - h(u.right) \end{gather*}

Insertion and Deletion Algorithms

UPDATE PHASE: Insert or delete as we would in a binary search tree.

REBALANCE PHASE: Let $x$ be parent of the node that was just inserted, or just cut during deletion, in the UPDATE PHASE. THe path from $x$ to the root will be called the rebalance path. We now move up this path, rebalancing nodes along this path as necessary.

Let $u$ be the first unbalanced node we encounter along the rebalance path from bottom to top. It is clear that $u$ has a balance of $\pm 2$ . The situation is illustrated below:

Insertion Rebalancing

CASE (I.a): $h_L = h$ and $h_R = h - 1$ . This means that the inserted node is in the left subtree of $v$ . In this case, we rotate $v$ , the result would be balanced. Moreover, the height of $u$ is now $h+1$ . We call this the "single-rotation" case.

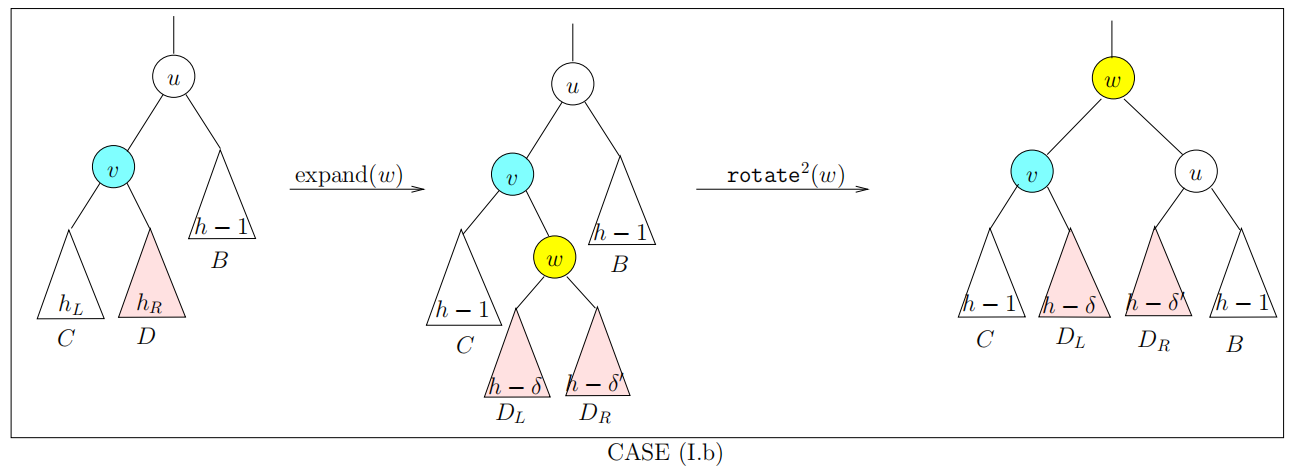

CASE (I.b): $h_L = h - 1$ and $h_R = h$ . This means that the inserted node is in the right subtree of $v$ . In this case, let us expand the subtree $D$ and let $w$ be its root. The two children of $w$ will have heights $h - \delta$ and $h - \delta'$ where $\delta, \delta' \in \{1, 2\}$ . Now a double-rotation at $w$ results in a balanced tree of height $h+1$ rooted at $w$ .

Deletion Rebalancing

CASE (D.a): $h_L = h$ and $h_R = h - 1$ . This is like case (I.a) and treated in the same way, namely a single rotation at $v$ . Now $u$ is replaced by $v$ after this rotation, and the new height of $v$ is $h+1$ . Now $u$ is AVL balanced. However, since the original height is $h + 2$ , there may beb unbalanced node further up the rebalance path. Thus, this is a non-terminal case.

CASE (D.b): $h_L = h - 1$ and $h_R = h$ . This is like case (I.b) and treated in the same way, namely a double rotation at $w$ . Again, this is a non-terminal case.

CASE (D.c): $h_L = h_R = h$ . This case is new, we simply rotate at $v$ . We check that $v$ is balanced and has height $h+2$ . Since $v$ is in the place of $u$ which has height $h+2$ originally, we can safely terminate the rebalancing process.

Ratio/Weight Balanced Trees

ρ-ratio

\begin{gather*} \rho < ratio(u) < 1/\rho \end{gather*}

Insertion and Deletion Algorithms

Example: $ho = 1/3$

UPDATE PHASE: Insert or delete as we would in a binary search tree. In insertion, this results in a new leaf $x$ in $T$ . If deletion, we will physically "cut" the leaf $x$ from $T$ .

REBALANCE PHASE: Let $u$ be the parent of $x$ . Clearly, every node that is not RB balanced must lie on the root-path of $u$ . We therefore move up this path, rebalancing any such node.

Rebalance(u)
  While (u != u.parent)
    u <- Rebalance-Step(u)
    u <- u.parent

Rebalance-Step(u)
  If (ratio(u) >= 3)
    v <- u.left
    If (ratio(v) >= 3/5)
      Return(rotate(v))
    Else \\ ratio(v) < 3/5
      Return(double-rotate(v.right))
  elif (ratio(u) <= 1/3)
    v <- u.right
    If (ratio(v) <= 3/5)
      Return(rotate(v))
    Else \\ ratio(v) > 3/5
      Return(double-rotate(v.left))
  else
    Return(u)

Generalized B-Trees: (2,3)-trees

(a,b)-search trees

Lecture Note 3, Page 80.

An (a,b)-search tree is an (a,b)-tree whose nodes are organized as an external search tree, which means items are only stored in leaves. Leaves are also called external nodes.

Leaves: $(a', b')$ where $1 \le a' \le b'$ .

Default assumption for leaves: $a' = b' = 1$ .

Reorganization of nodes

For an internal node $u$ ,

$u$ is overfull if its degree is $b+1$ .
$u$ is underfull if its degree is $a-1$ .

Simple Remedy: borrow or donate children

Strong Remedy: when simple remedy fails.

Split an overfull node
Merge an underfull node

Split-Merge Inequality

\begin{gather*} a \le {{b + 1} \over {2}} \end{gather*}

This is a combination of split inequality ( $a \le \lfloor{{b+1}\over{2}}\rfloor$ ) and merge inequality ( $a \le {{b + 1} \over {2}}$ ). Since $a$ and $b$ are integers, these two are equivalent.

The minimum height of binary trees with $n$ nodes:

\begin{gather*} h \ge \lg(n + 1) - 1 \end{gather*}

A binary tree is a binary search tree if each node $u \in T$ has a field $u$ .key that satisfies the BST property:

\begin{gather*} u_L.key < u.key \le u_R.key \end{gather*}

More generally, define the balance of any node $u$ of a binary tree to be the height of the left subtree minus the height of the right subtree:

\begin{gather*} b(u) = h(u.left) - h(u.right) \end{gather*}

Let $u$ be the first unbalanced node we encounter along the rebalance path from bottom to top. It is clear that $u$ has a balance of $\pm 2$ . The situation is illustrated below:

CASE (D.b): $h_L = h - 1$ and $h_R = h$ . This is like case (I.b) and treated in the same way, namely a double rotation at $w$ . Again, this is a non-terminal case.

\begin{gather*} esize(u) = \begin{cases} 1 & \text{if } u = nil \\ esize(u.left) + esize(u.right) & \text{if } u \neq nil \end{cases} \end{gather*}

\begin{gather*} ratio(u) := {esize(u.left) \over {esize(u.right)}} \end{gather*}

\begin{gather*} \rho < ratio(u) < 1/\rho \end{gather*}

Example: $ho = 1/3$

UPDATE PHASE: Insert or delete as we would in a binary search tree. In insertion, this results in a new leaf $x$ in $T$ . If deletion, we will physically "cut" the leaf $x$ from $T$ .

REBALANCE PHASE: Let $u$ be the parent of $x$ . Clearly, every node that is not RB balanced must lie on the root-path of $u$ . We therefore move up this path, rebalancing any such node.

Degree bound: Let $m$ be the number of children of an internal node $u$ . This is also known as the degree of $u$ . In general, we have the bounds $a \le m \le b$ .

The root is an exception, with the bound $2 \le m \le b$ .

Leaves: $(a', b')$ where $1 \le a' \le b'$ .

Default assumption for leaves: $a' = b' = 1$ .

For an internal node $u$ ,

$u$ is overfull if its degree is $b+1$ .

$u$ is underfull if its degree is $a-1$ .

\begin{gather*} a \le {{b + 1} \over {2}} \end{gather*}

This is a combination of split inequality ( $a \le \lfloor{{b+1}\over{2}}\rfloor$ ) and merge inequality ( $a \le {{b + 1} \over {2}}$ ). Since $a$ and $b$ are integers, these two are equivalent.
